China Inner rotor CDI unit

Vital Information
Price	$5.00
Part No	TRC-0770
Location	209F
Stock Level	In Stock

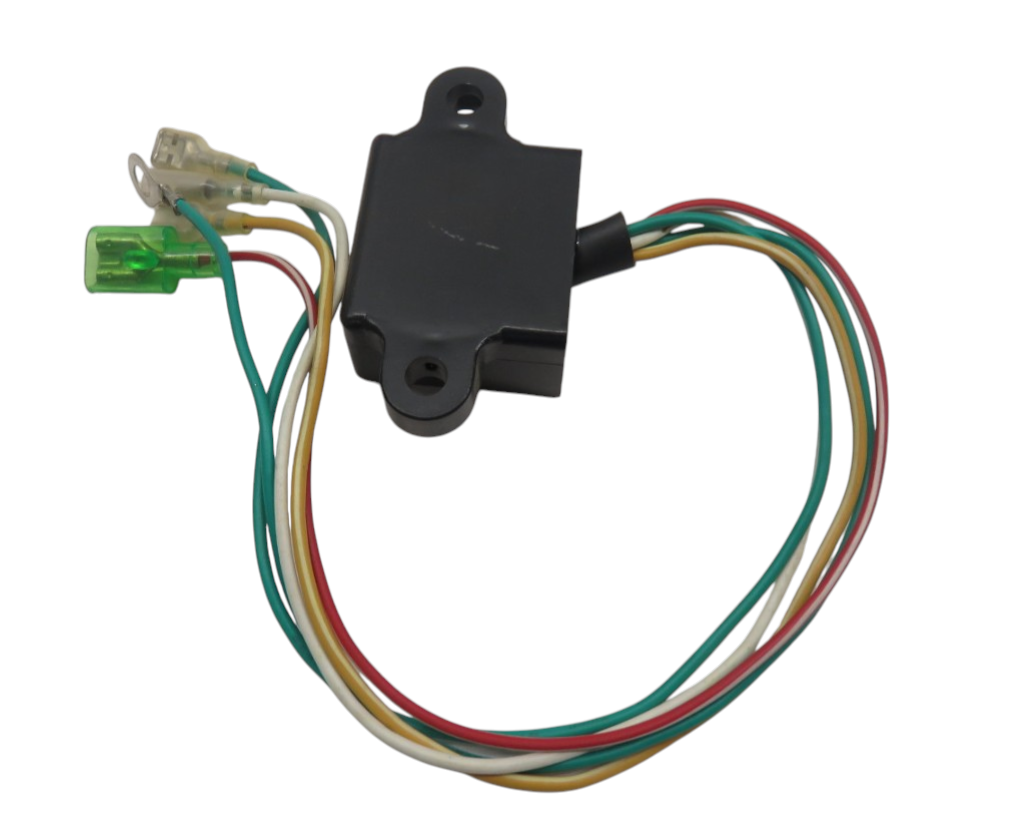

Inner Rotor CDI unit

Replacment CDI unit

wiring info

China Inner rotor:

1. Green wire with (loop fitting) goes to Ground
2. Green wire with horseshoe fitting goes to Green terminal on coil
3. Yellow wire with horseshoe fitting goes to yellow terminal on coil
4. Brown wire goes to white off the stator
5. Red wire (has 2 connections) 1 is for Black wire off the stator the other is for a kill switch connection

Write Review

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
