CNC aluminum swingarm kit for a Pitster Pro X4 or SSR "TX" model pit bikes! Works very well on other pit bikes depending on application.
Key Features:
- 6061 aluminum extrusion
- CNC machined from extrusions
- Heat-treated to T4 and T6 tempers to optimize its strength and mechanical properties.
Specifications:
- Total Length - 18.5inches or 470mm
- Center to center spacing from center of axle slot to center of pivot bolt - 16.5 inches or 420mm
- Pivot axle size - 10mm and 7 7/8inches long or 200mm long
- Width at pivot axle - 4.75 inches or 120.65mm
- Rear axle length - Approximately 9 1/4 inches or 235mm

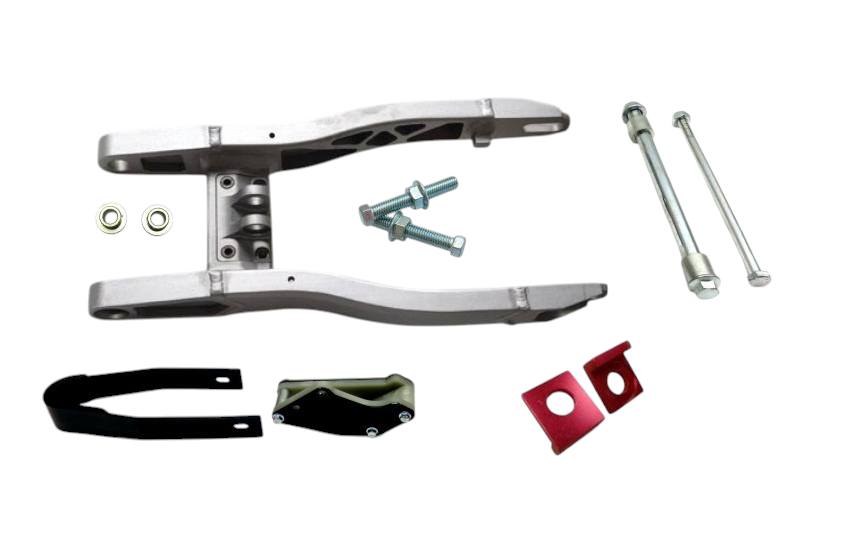

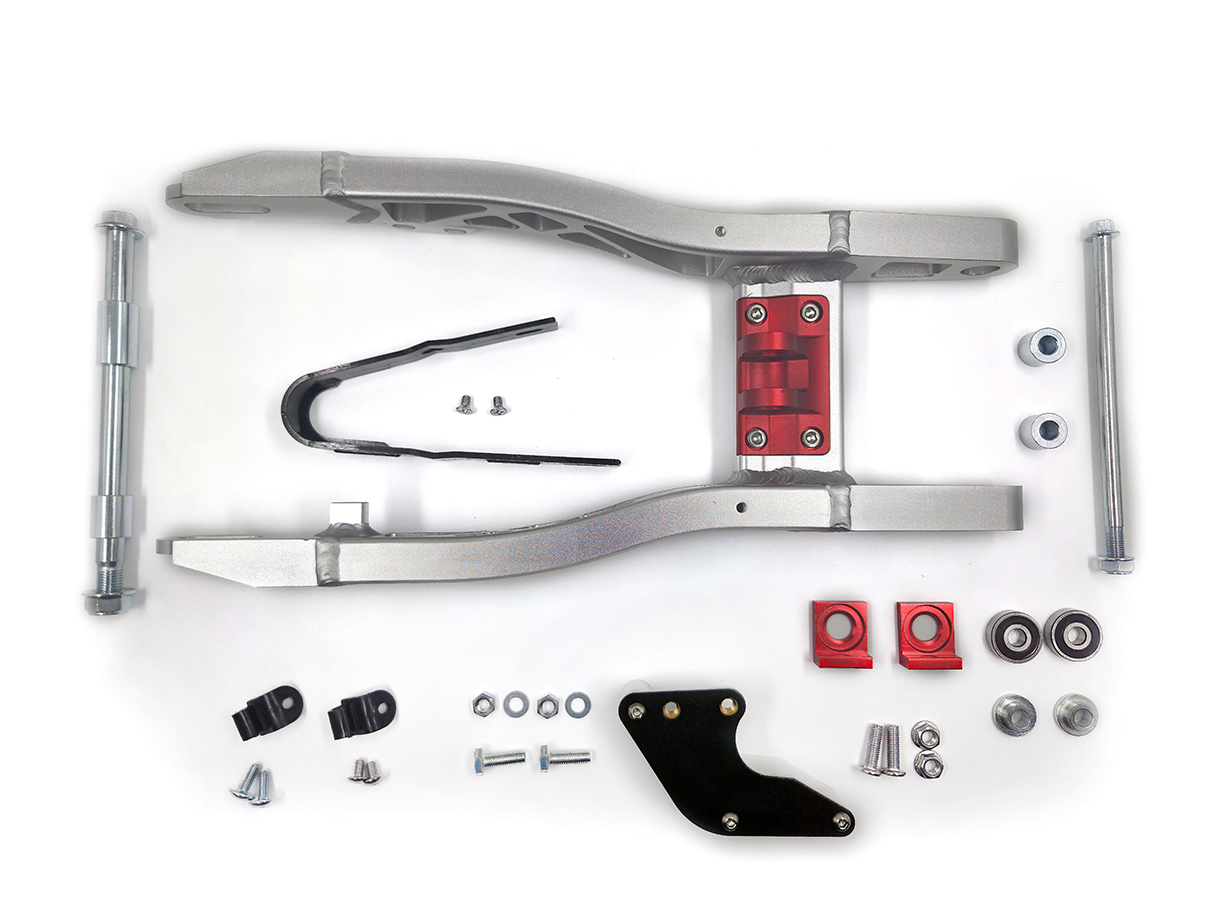

Kit Includes:
- Swingarm axle
- Chain slider
- Chain guide
- Chain adjusters
- Front brake line bracket
- 15mm rear axle - TRC-2048 (225mm long with 38mm wide and 25mm wide spacers)
- 15mm axle blocks
- Pivot bearings 6200-2RS
Recommended:
- (For helping with KLX 110 swaps) BBR upper shock mount - 331-KLX-1110 (available on their website)
Note: Parts below will allow for upgrade to 12mm pivot axle bolt:
- Swingarm bearings: - 16101-2RS
- Axle (+10mm) - WHS-2375
- Please put your bike on a stand an measure first but customers have used this WHS-1347 rear shock with good results
Note:
This is a replacement swingarm for Pitster Pro X4 and SSR TX bikes and similar China bikes
This swingarm will mount to a KLX110 however many many custom fabrications will be needed for the brakes.
Note: HARDWARE IS NOT INCLUDED. This kit only comes with what is shown and listed.
