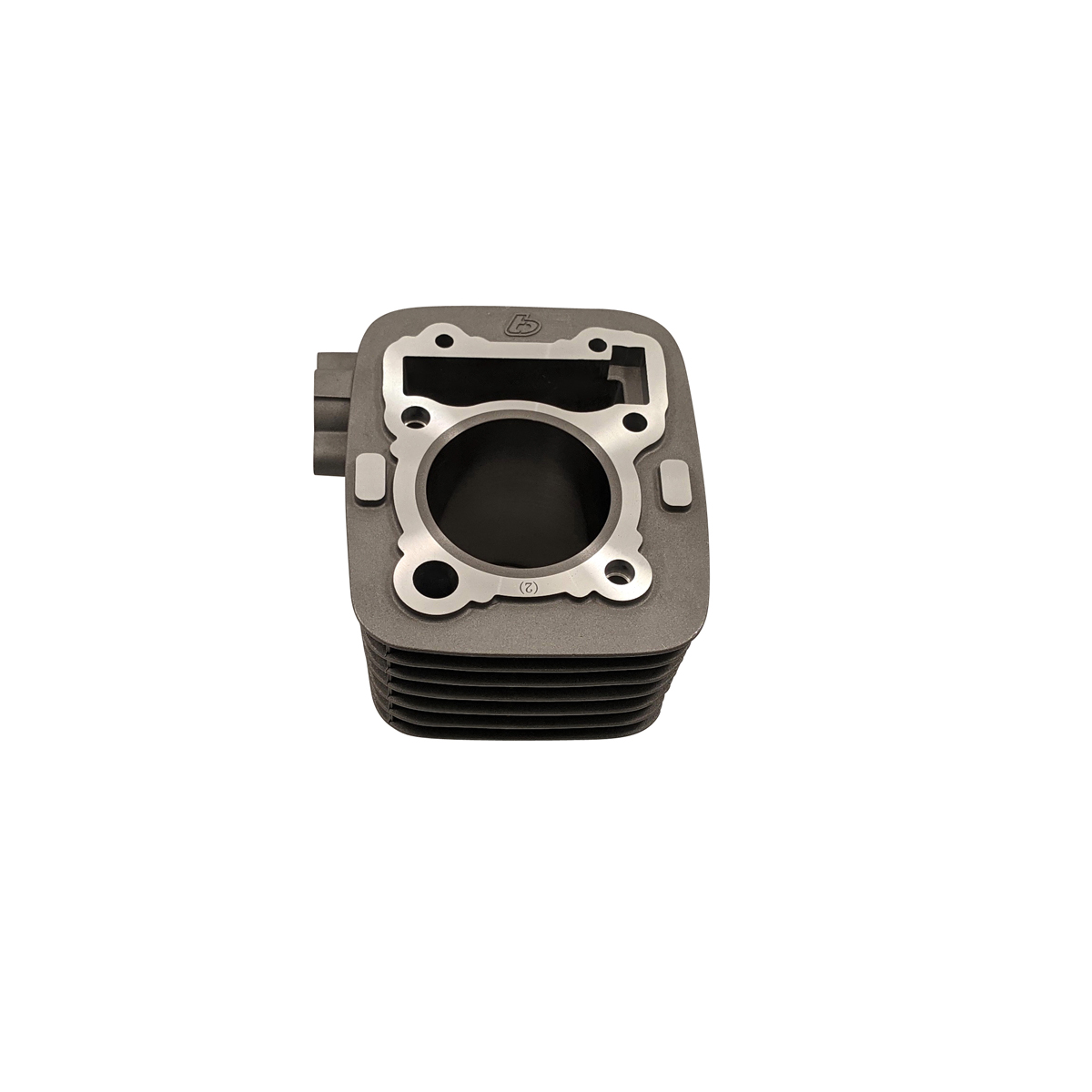

TBPARTS - 63mm Cylinder for KLX140 with 170cc Bore Kit

Vital Information
Price$139.99
Part No TBW1545
Location220E
Stock Level 1 Left

Note: 2025 - Present  KLX140 Engines – require case boring to fit.
Our cylinder skirt is 65.95mm 2025+ cases are only 65.4mm wide.

Replacement cylinder for a KLX140 with TB parts 170cc big bore kit.

Spec

  • Skirt O.D. 66mm

  • Skirt Height 27.7mm
