Piranha - Rear Brake System

Vital Information
Price	$135.29
Part No	WHS-2564
Location	136A
Stock Level	4 Left

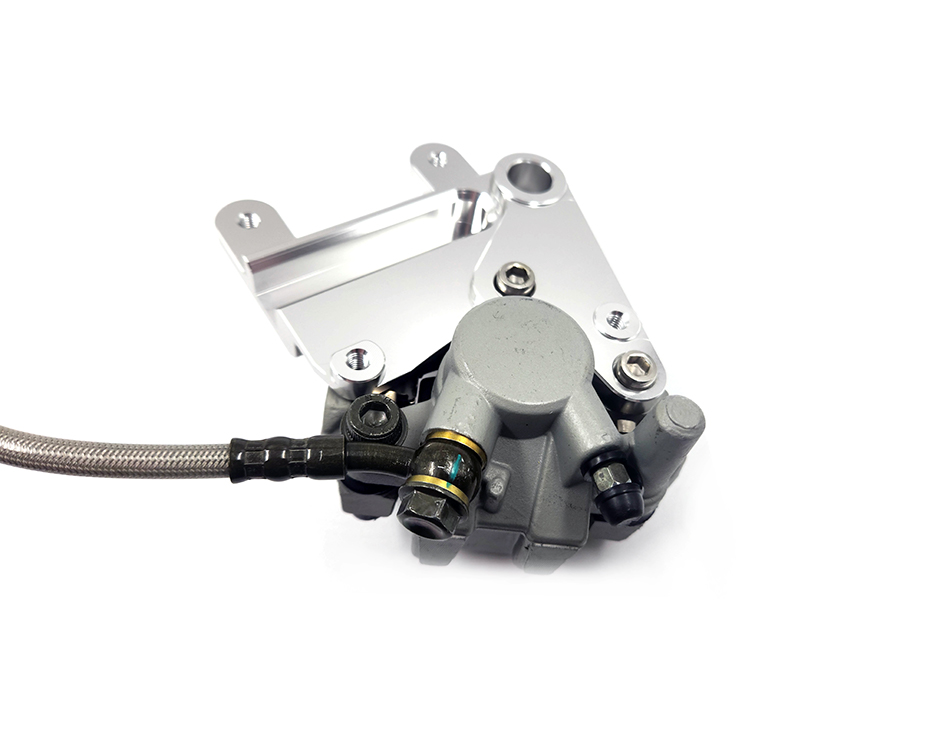

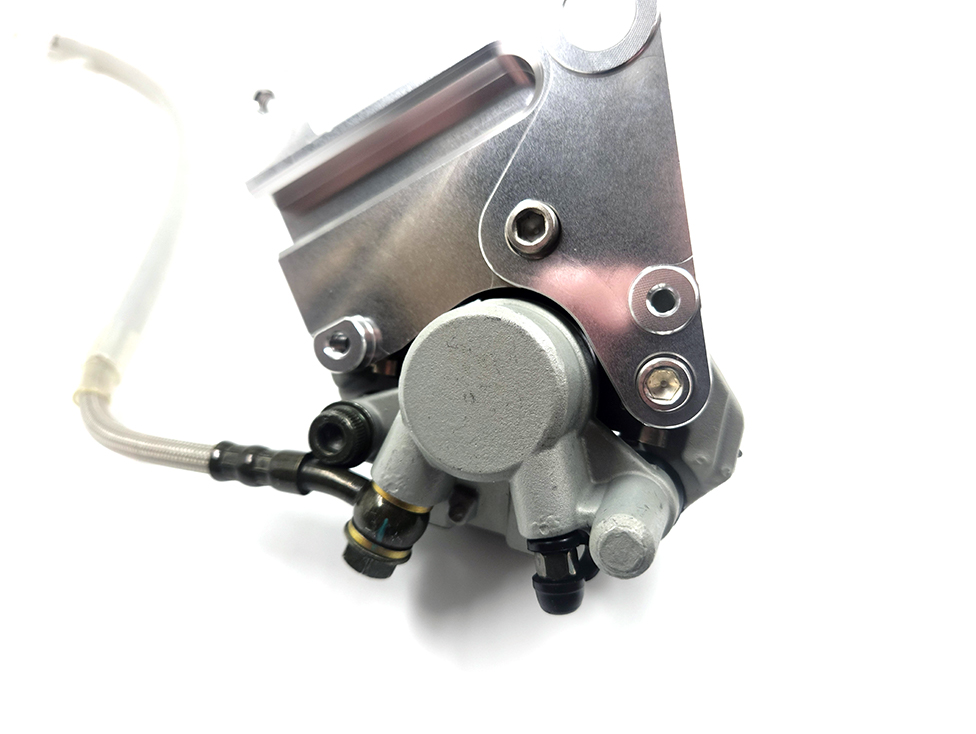

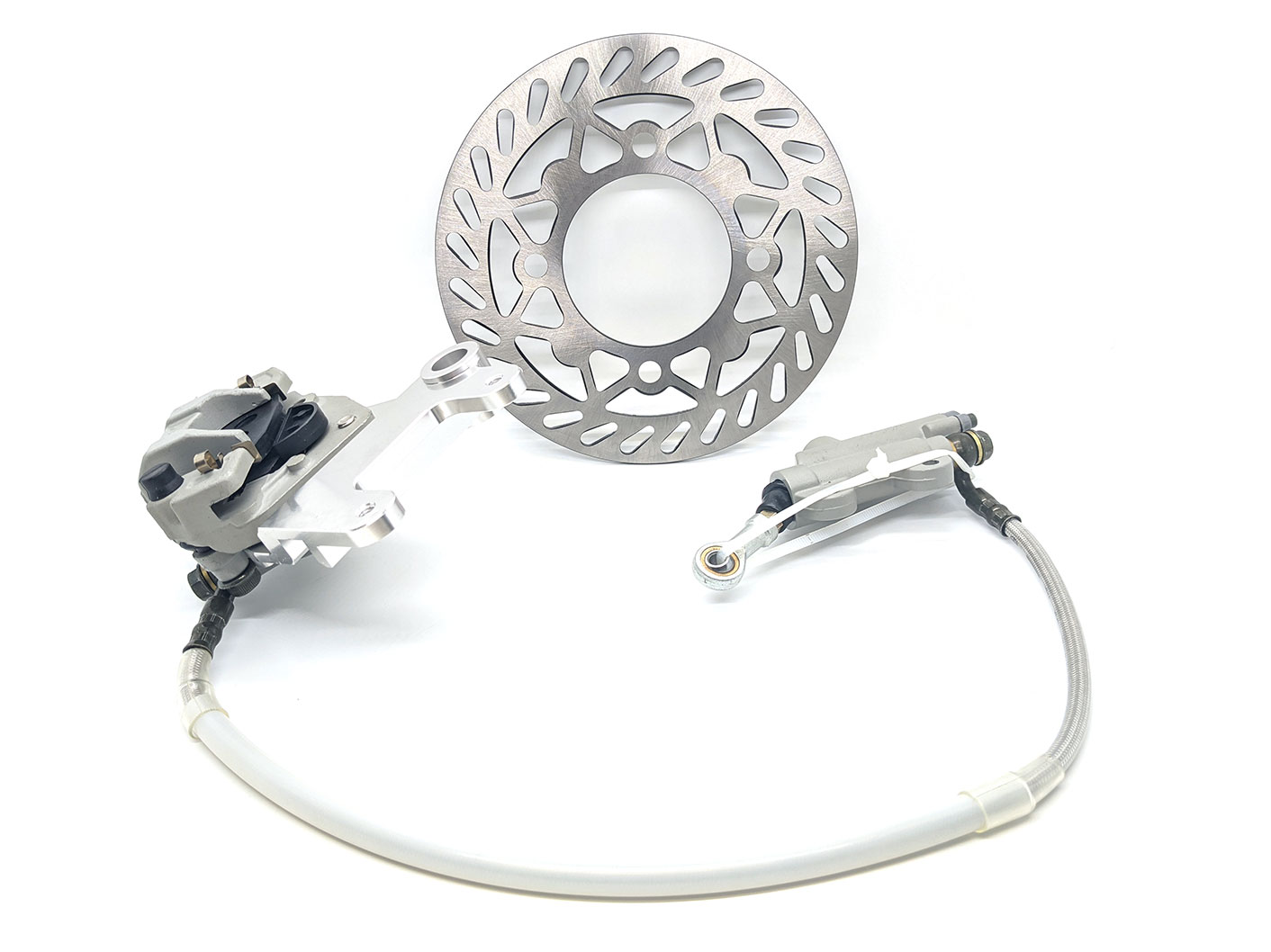

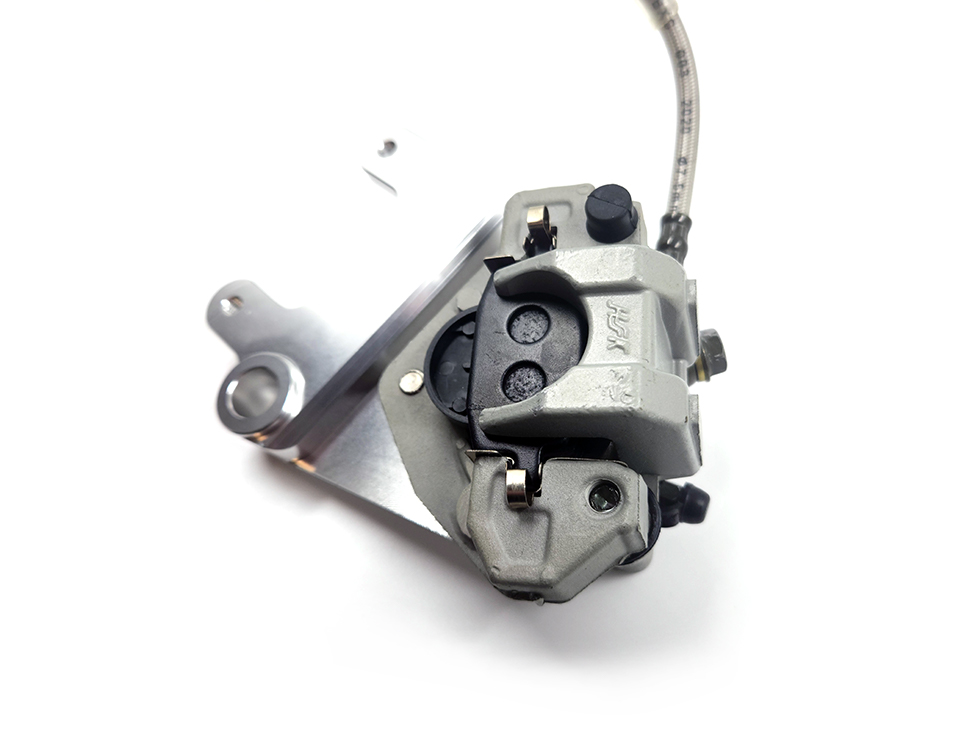

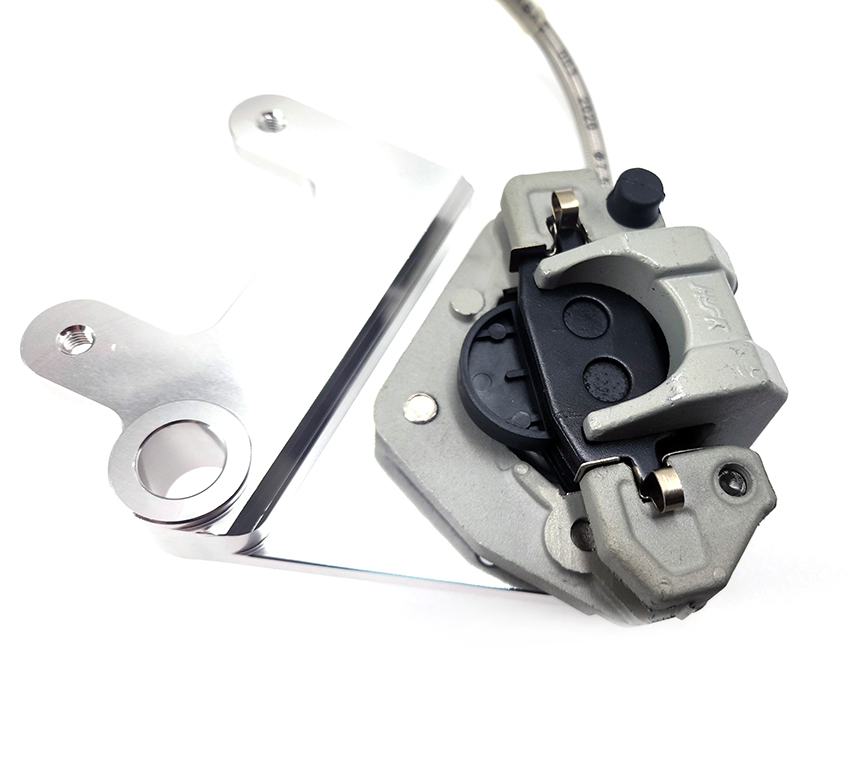

Piranha rear brake system

Key Features:

Pre-bled for easy installation
Brake pads included

Application:

Piranha P160-R
Pitbikes with 15mm axle

Specifications:

Caliber center to center bolt hole spacing - 43mm
Master cylinder center to center bolt hole spacing - 45mm
Caliber bracket center to center bolt hole spacing - 70mm
Brake line length - Approximately 480mm long
15mm axle type
Brake rotor diameter - 190mm

Write Review

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
