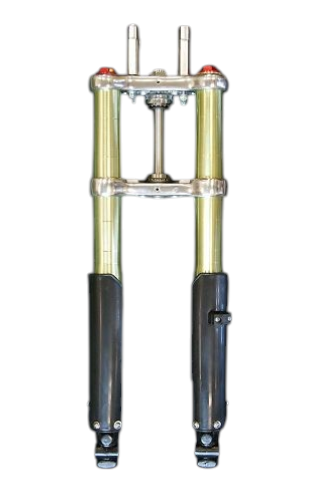

Piranha - 600mm Pit bike Inverted Front Forks

Vital Information
Part No WHS-1812
Stock Level Out of Stock!
Want an email when we get this back in?
Get on the List

Note: THIS PART IS NOT A DIRECT BOLT ON FOR ANY SPECIFIC MACHINE. However it can be used on various bikes. These forks are NOT the same fork as in WHS-1502 front end kit

Note: May be modified for drum brake use (No instructions on this)

Key Features:

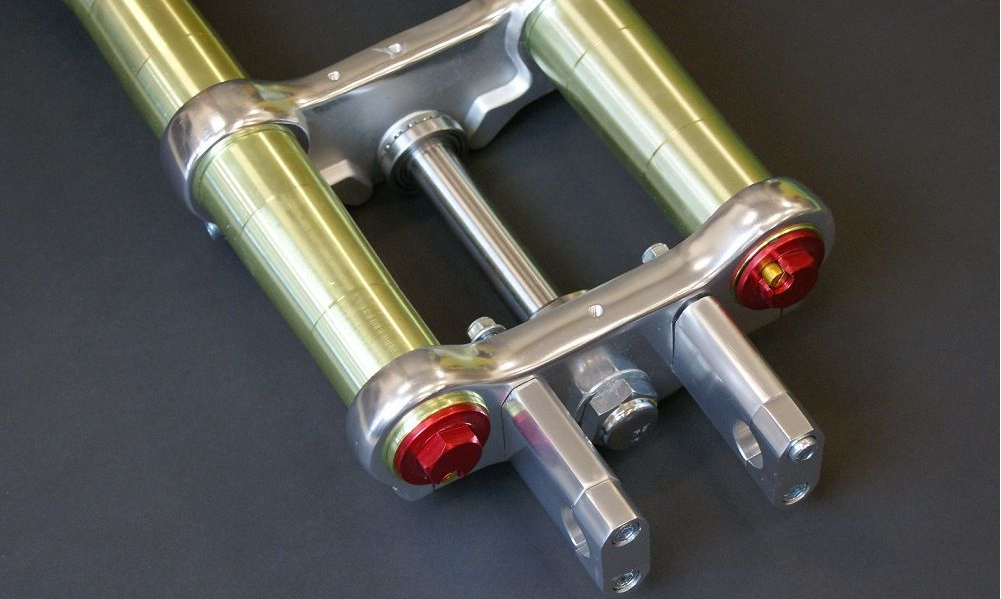

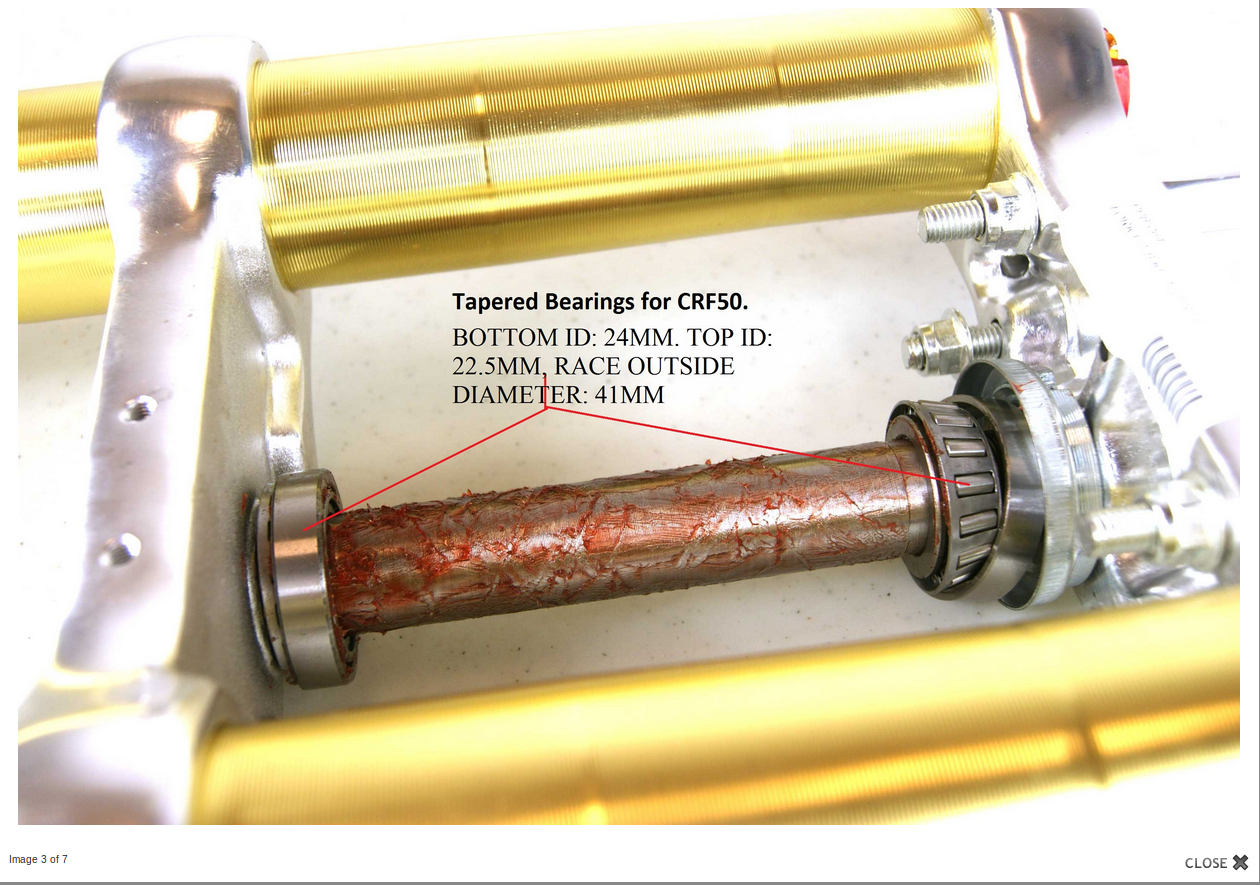

  • Features aluminum triple clamps, fork guards, and new stem bearings (Honda crf50 size)
  • Accepts 12mm axle
  • Brake caliper mounting holes measure 43mm (bolt hole to bolt hole, center to center)

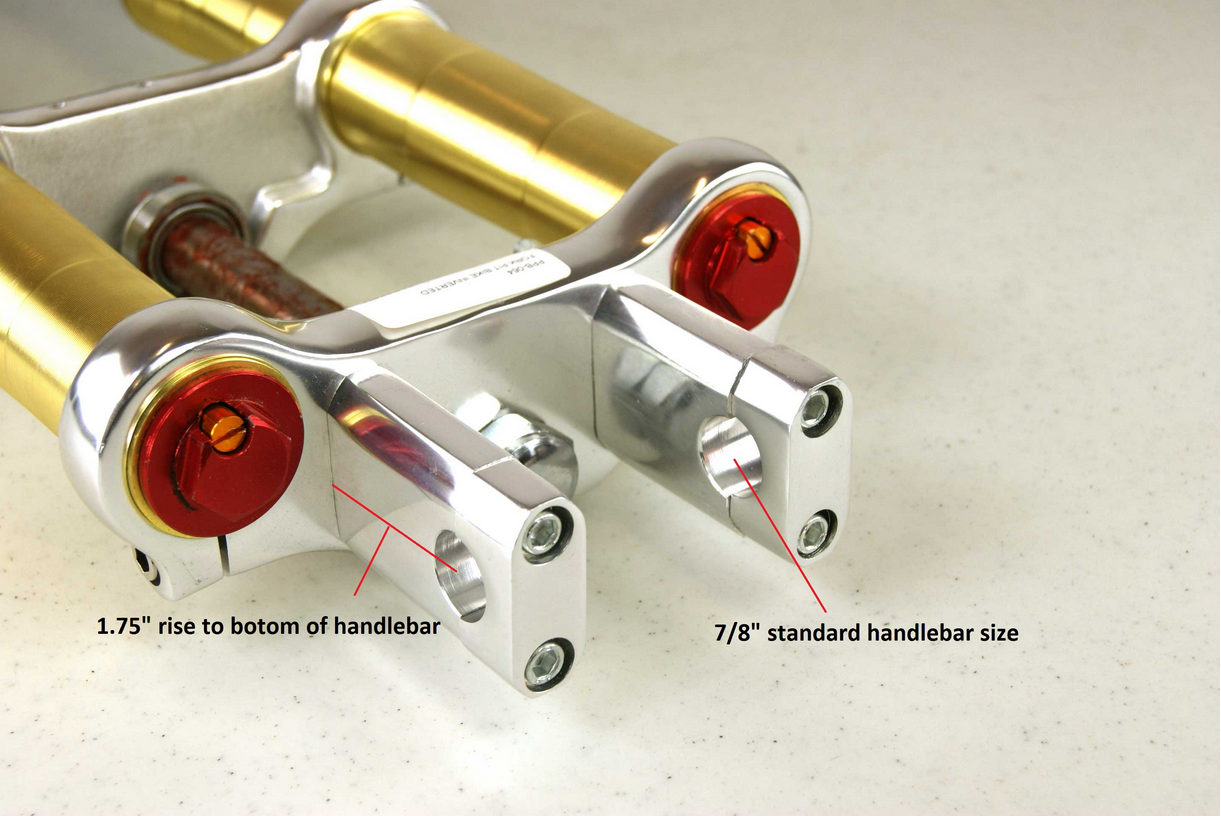

  • Comes complete with 2.5 inch risers
  • Made for use with 200mm Disc Brake


  • Stem length overall - 215mm
  • Top clamp thickness - 30mm
  • Bottom clamp thickness - 30mm


  • WHS-999     Front brake system 43mm
  • WHS-5857   12" Front wheel
  • TRC-1796    200mm Disc brake rotor
  • WHS-1498   15mm to 12mm reducers
  • WHS-1020   12mm Axle
  • TRC-9390    12mm Aluminum wheel spacer stock
  • TRC-8073     Replacement fork guards


Available Options:
