Piranha - 12" Super Moto Wheel Set

Vital Information
Price	$330.24
Part No	WHS-1118
Stock Level	8 Left
Choose Options

Note: All new wheels require a spoke break in period, until the spokes are settled in,
You must check your spokes.

Please Check all wheel spokes. Re-Check all spokes after EVERY ride for the first 5-10 rides until they settle in place, then check periodically.

We offer a SPOKE WRENCH Part No. W-57-0006

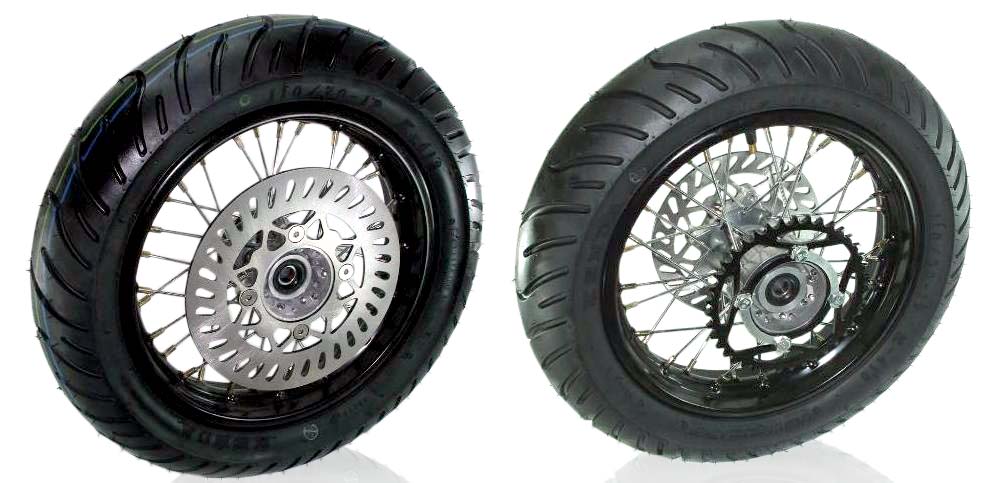

Piranha TM V1 complete motard wheel set! 12" rims with tires. 32 spoke wheels front and rear. Includes everything shown in photos. Pre-assembled 12" Piranha race wheel. Cast aluminum hubs with steel rims that accept standard 15mm axles.

Application:

Modified Honda CRF50's, SDG, BBR, SSR, Roketa, Pitster Pro, Red Barron, Pitster Pro, Sikk MX, Xtreme, Piranha, Coolster, and almost all other pit bikes

Specifications:

FRONT:

Rim - 2.15in
Tire - Kenda k-47L 110/70-12
Rotor - 220mm

REAR:

Rim - 2.15in
Tire - Kenda k-47L 110/70 12
39T sprocket 420 chain size
Rotor - 190mm
Centerline measurement approximately 130mm from rotor to sprocket. This is common to most all China pit bikes (Not Japan bikes so measure first)

NOTE:
Outside diameter measured 2.95 when measured here in our warehouse

NOTE:
May need to add or modify wheel spacers for side to side centering on different bikes, we sell spacers online.
We ONLY have 190mm thru 220mm diameter rotors available so please check your rotor size before ordering.

Available Options:

Shipping:

(1 Reviews)

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
