Honda Z50 Suspension Set Up Info
TBolt USA Tech Database!

TECH-0131

Honda Z50 Suspension Set Up Info
Here We show a few bike set ups
Stock Mod & Full mod to help you decide what parts to use

Stock Mod:

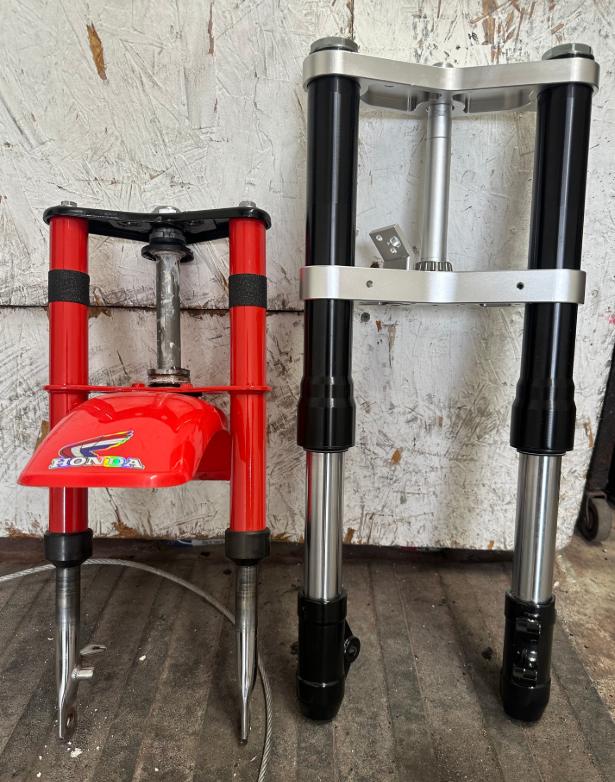

TBPARTS - AFTERMARKET FORK SET FOR Z50R 79-99
Part Number TBW1080
280mm Shocks part number TBW1145
TBPARTS - ALUMINUM SWINGARM +1.5" FOR 72-99 Z50 part number TBW0586

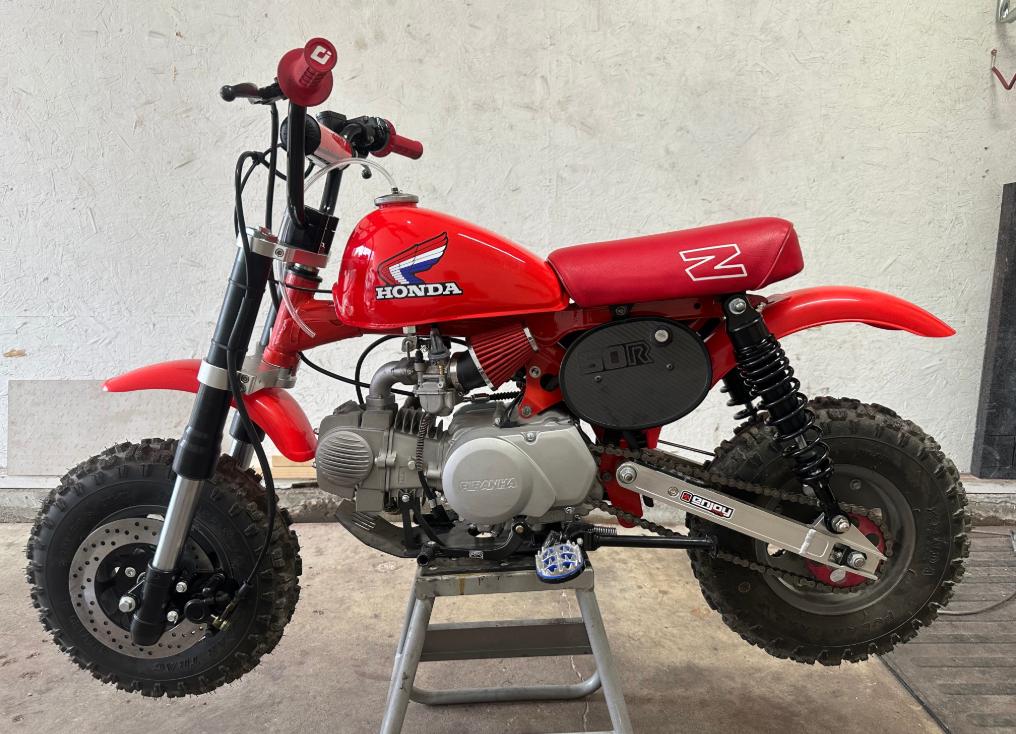

z50 Stock Mod

Full Mod:
KLX110 Fork Legs in TBparts Clamps part number TBW9151
+3 Longest Swingarm part number TBW0573
330mm shocks Part Number TRC-1940

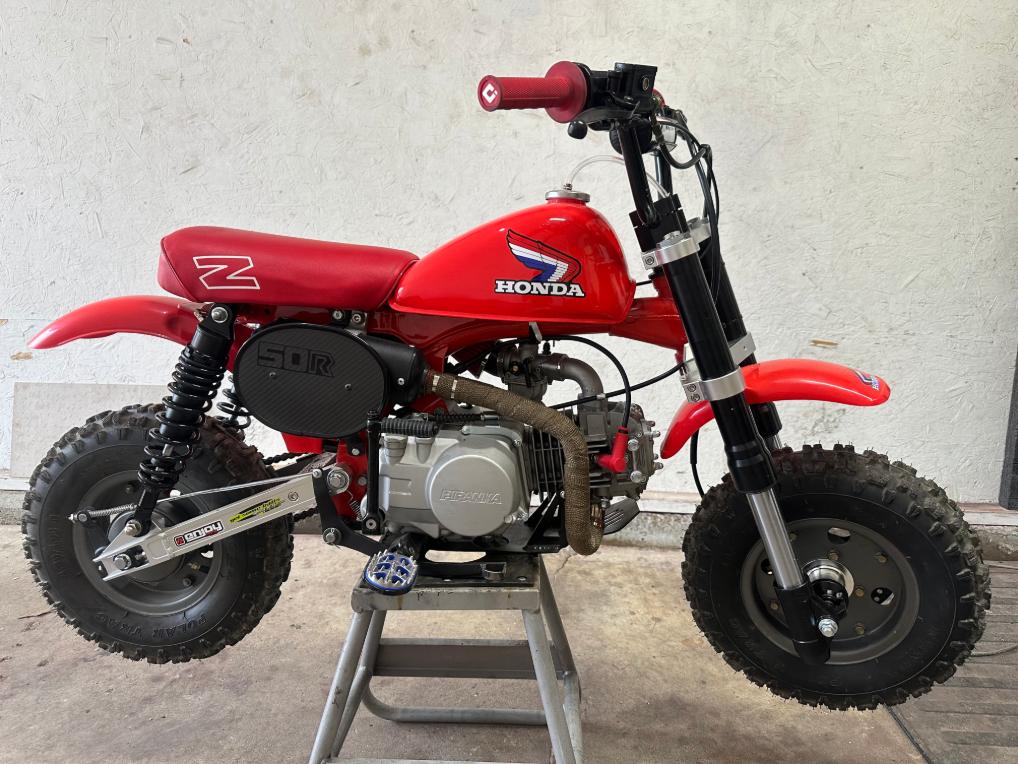

Z50 Full mod
