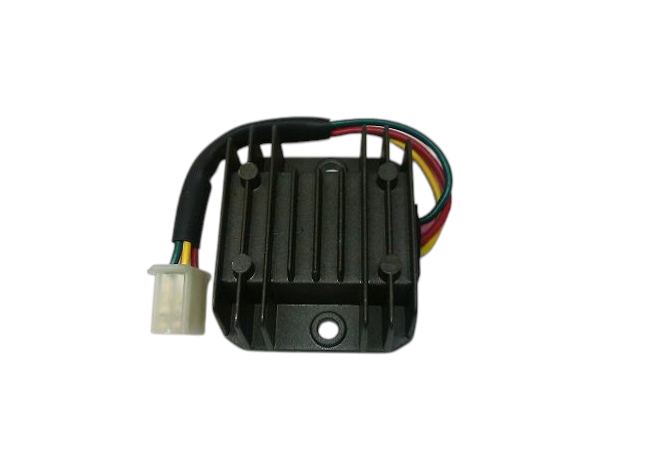

Voltage Regulator / Rectifier H-D 12V 4 Wire Type
Full wave

Vital Information
Price$20.00
Part No TRC-1845
Location209C
Stock Level 5 Left

H-D Voltage Regulator / Rectifier 12v

Can be use to run lights at 12VAC and Charge a 12DC Battery

For use with lighting coil and wiring harness on bikes with lights simple to install

Recommended:

  • We offer a Simple harness that connect into this unit and into most Pit bike Engines for easy use  Part number TRC-0169

Green = Ground
Yellow = 12VAC regulated
Pink = Feed in for DC rectified (normally connects to white)
Red = Feed out DC rectified (to battery)




Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
