$2,799.00 $2,749.00

Pitster Pro FXR 90 Electric Start Mini Quad
[TRC-0971]

Pitster Pro FXR 90 Electric Start Mini Quad1



T Bolt USA is a Factory authorized representitive for all Pitster ATV,s
This Product does have safty and age requirments and is only to be used riders who are old enough for the units to be operated safely Please contact us Directly to handle the purchase correctly via email , phone or fax

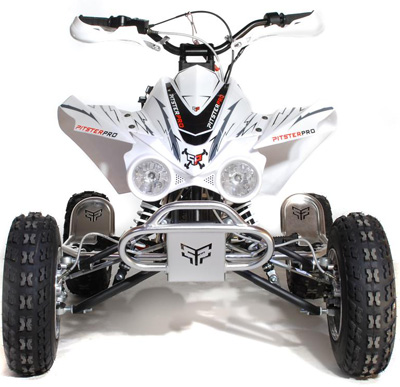

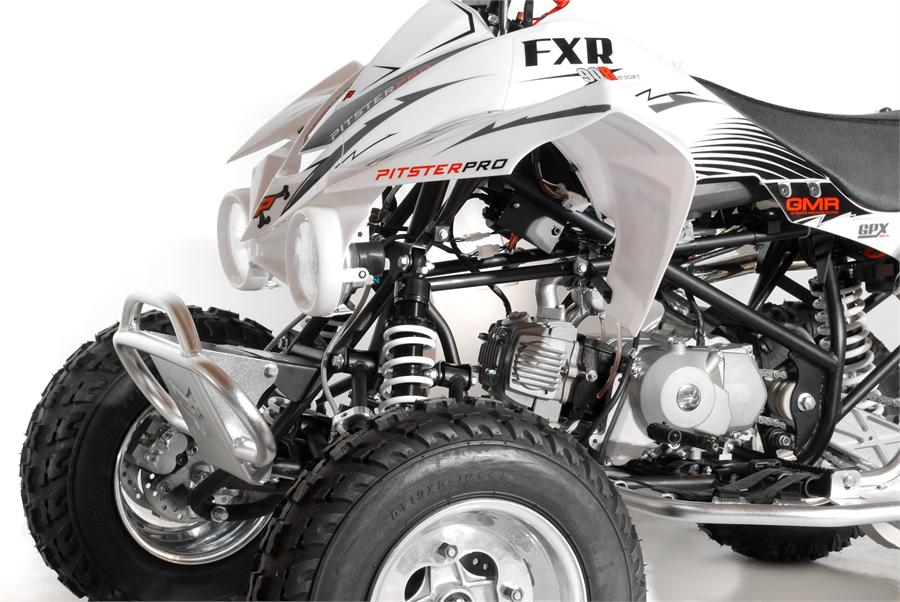

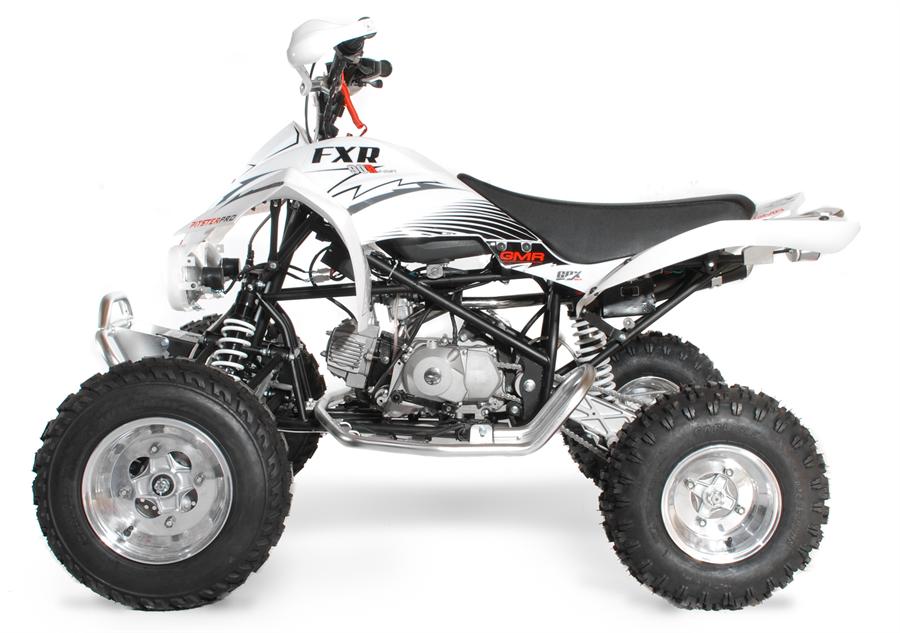

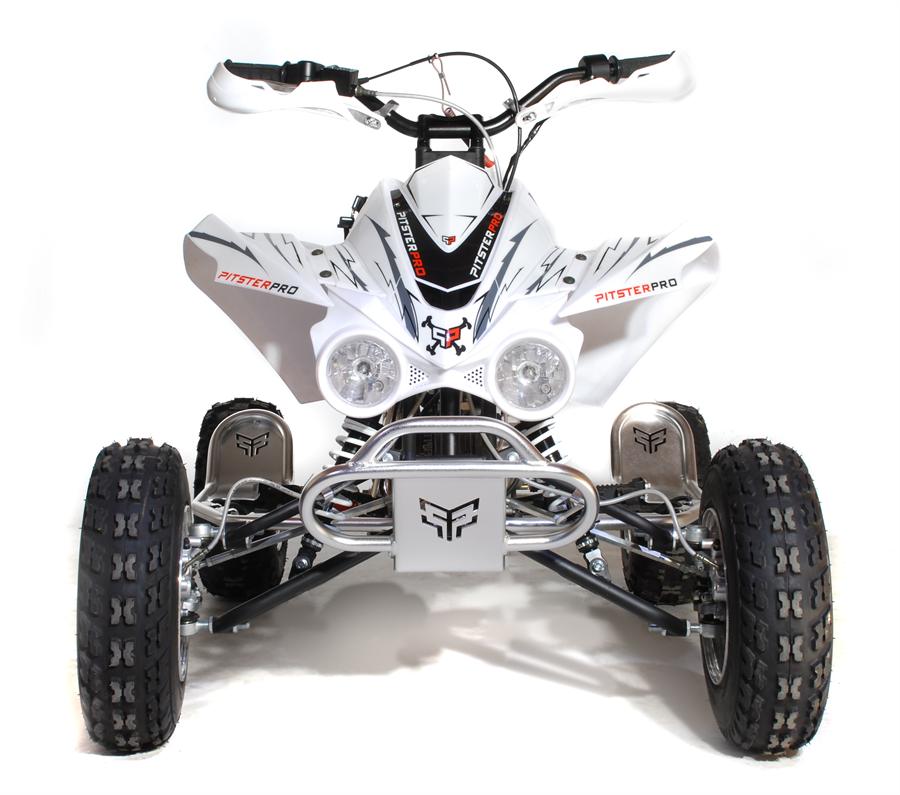

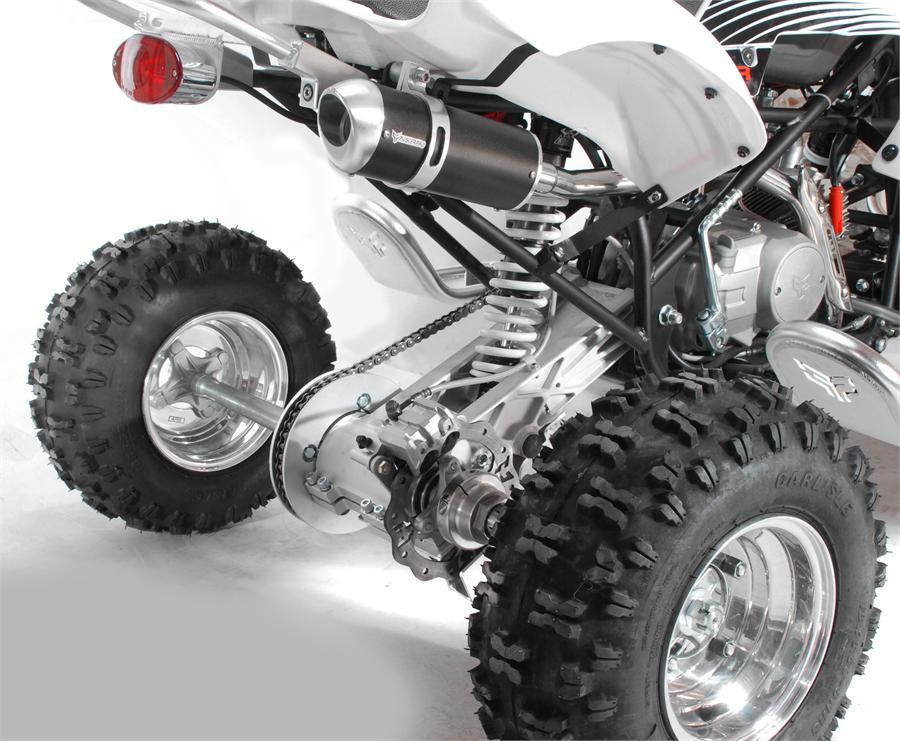

Meet the FXR 90R Electric Start MINI ATV

By far the most advanced ATV in its class with independent A-arm front suspension and long travel rear swing-arm all managed by piggy-back reservoir shocks that have preload, compression and rebound adjustments. The FXR uses a GPX Moto power-plant to power the Carlisle hole-shot style tires and tapered fat bars to give the rider maximum control in the roughest of condition.

The Pitster Pro mini quad is designed from the ground up to compete and destroy the mini atv racing scene. No other mini quad on the market has the standard features and powerful smooth running four stoke motor of the Pitster Pro ATV. Check the features against any other quad in the mini ATV racing market and you will soon see Pitster Pro is leading the pack against other mini quad and mini ATV racers.

  • GPX Moto 90cc Electric start engine
  • DNM dual rate Piggy-back coil-over shocks w/ adjustable comp. and rebound
  • Nerf Bars
  • 4-speed Semi Auto Clutch
  • Full Skid Plate
  • Alloy swing arm
  • 9.8" front/ 10" rear suspension travel










Bike Model
Model: FXR 90R E-START MINI ATV
MSRP: $3,395
CHASSIS AND DIMENSIONS
Color: White
Curb Weight: 215lbs
Frame: Chromoly closed cradle
Fuel Capacity: 3 L
Ground Clearance: 8"
Overall Length: 60"
Overall Width: 45"
Seat Height: 29"
Swingarm: Long Travel Alloy
Wheelbase: 43"
WHEELS AND TIRES
Front Tire: 6.5 x 12
Front Wheel: 12" Steel
Rear Tire: 7.25 x 10
Rear Wheel: 10" Steel
HYRAULIC DISC BRAKES
Front Brake: Dual Piston Calipers
Rear Brake: Axle mounted Wave Rotor
Rear Pedal: Steel Cantilever
SUSPENSION
Front: Dual Long Travel Control Arm
Rear: Long Travel with G1 GPX shock
Travel: 8" front/ 9" rear suspension travel
ENGINE
Carburetor: 22mm
Clutch: Five Plate Wet Clutch
Compression Ratio: 9.5 to 1
Cooling: Air Cooled
Engine: Four stroke 88cc SOHC
Gearing: 420/ 16T 41T
Ignition: Stator w/ lighting coil
Starter: Electric &Kick
Transmission: 4 Speed Semi-Auto Clutch
ADDITIONAL FEATURES
Electric start w/ back up kick start: Standard
Hand Guards: Standard
Taper Handle Bars 7061: Standard
