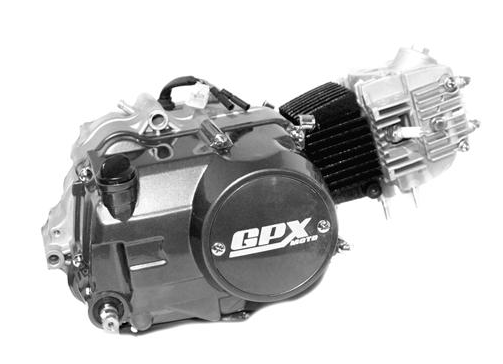

90cc 4speed engine With 3 valve performance head

4 up shifting

90cc Engine Specifications:

Type :4-Stroke single-cylinder OHC air cooled w/ 3 Valve head

Bore & Stroke: 47 X 49.5mm

Compression ratio: 9.0:1

Displacement: 86cc ( 88cc Class )

Max. HP: 7 HP @ 7,500 RPM

Max. Torque: 6.25 ftlbs @ 5,500 RPM

Idle: 1,500 RPM

Starter: Kick Start

Spark plug: A7TC or NGK C6HSA

Plug Gap: .28 or 0.6-0.8mm

Ignition system: CDI (Capacitive Discharge Ignition)

Lubrication: Pressure / Splash

Oil capacity: .8L (10w-30)

Measurements: 17" x 10 1/4" x 8 1/4"

Weight 42 Pounds

Clutch: semi auto

Gears: 4 speed

Magneto: Permanent magnetic

Voltage: 12 Volt

Engine will run accessories:

Lights and other accessories

Wiring harness
22mm carburetor and intake
Shifter and kick starter

Available Options:

Carb Choice:
20mm Tb carb (+$35.00)22mm mikuni (+$35.00)None
Shipping:
Flat Rate (+$40.00)
